The flasher relay is designated by fixed component number 81980 and type suffix. The suffix defines socket type and nominal bulb load. One type of relay appears in several different car models. Below is a table alowong to check the relay number regarding model, year, and chassis type.
|
Relay 81980-0D010 |
||
|
Date range |
Model |
Body type |
|
11/2005-06/2011 |
Toyota Yaris |
KSP90,NLP90,NSP90,SCP90 |
|
Relay 81980-05040 |
||
|
01/2001-10/2005 |
Toyota Yaris |
SCP1*,NLP10 |
|
11/2001-01/2007 |
Toyota Corolla |
CDE120,NDE120,ZZE12* |
|
01/2002-01/2007 |
Toyota Corolla |
CDE120,NDE120,ZZE12* |
|
02/2004-01/2009 |
Toyota Corolla Verso |
AUR10,CUR10,ZNR1* |
|
01/2003-10/2008 |
Toyota Avensis |
AZT250 |
|
01/2003-10/2008 |
Toyota Avensis |
ADT25*,AZT25*,CDT250,ZZT25* |
|
Relay 81980-46010 |
||
|
11/2008-04/2014 |
Toyota IQ |
KGJ10,NGJ10,NUJ10 |
|
09/2012-11/2012 |
Toyota IQ EV |
KPJ10 |
|
08/2005-05/2011 |
Toyota Yaris |
KSP90,ZSP90 |
|
01/2009- |
Toyota Urban Cruiser |
NLP11*,NSP110 |
|
11/2006-03/2013 |
Toyota Corolla |
ADE150,NDE150,NRE150,ZRE151,ZZE150 |
|
02/2008-05/2013 |
Toyota Corolla |
ADE150,NDE150,NRE150,ZRE151,ZZE150 |
|
10/2006-07/2012 |
Toyota Auris, Corolla |
ADE150,NDE150,NRE150,ZRE15*,ZZE150 |
|
02/2007-04/2013 |
Toyota Auris (Hybrid) |
ADE15*,NDE150,NRE150,ZRE15*,ZZE150,ZWE150 |
|
08/2003-02/2009 |
Toyota PRIUS |
NHW20 |
|
04/2009- |
Toyota PRIUS |
ZVW30 |
|
12/2009-09/2010 |
Toyota Prius (Plug-In Hybrid) |
ZVW35 |
|
05/2012- |
Toyota Prius (Plug-In Hybrid) |
ZVW35 |
|
11/2005-11/2012 |
Toyota RAV4 |
ACA3*,ALA3*,GSA33,ZSA3* |
|
Relay 81890-50030 |
||
|
01/1999-07/2005 |
Toyota Yaris |
NCP1*,NLP10,SCP10 |
|
08/1999-08/2005 |
Toyota Echo Verso, Yaris |
NCP2*,NLP2* |
|
01/2001-10/2005 |
Toyota Yaris |
SCP1*,NLP10 |
|
10/2001-09/2006 |
Toyota Corolla |
CDE120,NDE120,ZZE12* |
|
09/2002-09/2006 |
Toyota Corolla |
CDE120,NDE120,ZZE12* |
|
11/2001-01/2007 |
Toyota Corolla |
CDE120,NDE120,ZZE12* |
|
09/2001-12/2003 |
Toyota Corolla Verso |
CDE120,ZZE12* |
|
01/2002-01/2007 |
Toyota Corolla |
CDE120,NDE120,ZZE12* |
|
12/2010- |
Lexus CT200H |
09:13 24.12.2017ZWA10 |
|
01/1999-06/2005 |
Lexus IS200/300 |
GXE10,JCE10 |
|
08/1999-08/2005 |
Toyota Celica |
ZZT23* |
|
10/1997-12/2002 |
Toyota Avensis |
AT22*,AZT220,CDT220,CT220,ST220,ZZT22* |
|
08/1996-08/2001 |
Toyota Camry |
MCV20,SXV20 |
|
08/2001-12/2005 |
Toyota Camry |
ACV3*,MCV30 |
|
08/1997-12/2004 |
Lexus GS300/430 |
JZS160,UZS161 |
|
10/1994-07/2000 |
Lexus LS400 |
UCF20 |
|
08/2006- |
Lexus LS460/460l |
USF4* |
|
05/2001-11/2009 |
Toyota Avensis Verso, Picnic |
ACM20,CLM20 |
|
02/2000-12/2005 |
Toyota Previa, Tarago |
ACR30,CLR30 |
|
01/2006- |
Toyota Previa, Tarago |
ACR50,GSR50 |
|
05/2000-10/2005 |
Toyota RAV4 |
ACA2*,CLA2*,ZCA2* |
|
08/1995- |
Toyota Hiace, Hiace S.B.V |
KLH1*,2*, LXH1*,2*,RCH1*,2* |
|
09/2002-07/2009 |
Toyota Land Cruiser Prado |
GRJ12*, KDJ12* |
|

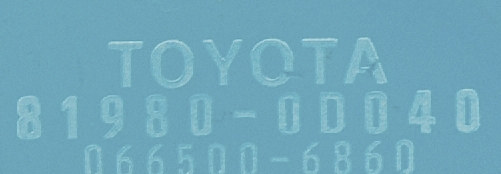

Relay 81890-0D040 |
||
|
11/2005-06/2011 |
Toyota Yaris |
KSP90, NLP90, NSP90, SCP90 |
|
02/2009- |
Toyota Verso |
AUR2*, ZGR2*, WAR20 |
|
06/2007-09/2012 |
Toyota Auris |
ADE150, NRE150, ZRE15*, ZZE150 |
|
11/2008-03/2011 |
Toyota Avensis |
AZT270 |
|
11/2008- |
Toyota Avensis |
ADT27*, ZRT27* |
|
Relay 81980-30170 |
||
|
04/2006-03/2013 |
Lexus IS250/300 |
GSE2* |
|
08/2005-03/2013 |
Lexus IS250/350/2xxD |
ALE20,GSE2* |
|
08/2010-07/2014 |
Lexus IS F |
USE20 |
|
12/2007-07/2014 |
Lexus IS F |
USE20 |
|
05/2006-05/2012 |
Lexus ES240/350 |
ACV40,GSV40 |
|
05/2006-06/2012 |
Toyota CAMRY (Hybrid) |
ACV4*,AHV40,GSV40 |
|
01/2006-08/2011 |
Toyota Camry |
ACV40,GSV40 |
|
06/2006-09/2011 |
Toyota Aurion, Camry, HV |
ACV40,AHV40,GSV40 |
|
12/2011- |
Toyota Mark X |
GRX130 |
|
11/2004-01/2008 |
Toyota Crown |
GRS182 |
|
09/2010-11/2012 |
Toyota Crown |
GRS202 |
|
01/2005-11/2011 |
Lexus Gs30/35/43/460 |
GRS19*, URS190, UZS190 |
|
02/2006-11/2011 |
Lexus Gs450h |
GWS191 |
|
08/2006-08/2012 |
Lexus Ls460/460l |
USF4* |
|
09/2012- |
Lexus Ls460/460l |
USF4* |
|
04/2007-08/2012 |
Lexus Ls600h/600hl |
UVF4* |
|
09/2012- |
Lexus Ls600h/600hl |
UVF4* |
|
12/2010-11/2012 |
Lexus Lfa |
LFA10 |
|
12/2008- |
Lexus Rx270/350/450h |
AGL10, GGL15, GYL1* |
|
08/2004- |
Toyota Innova, Kijang Innova |
KUN40, TGN4* |
|
01/2005-03/2012 |
Toyota Fortuner |
GGN50,60, KUN5*,6*,LAN50,TGN51,61 |
|
08/2004-03/2012 |
Toyota HILUX |
GGN15,25,35, KUN1*,2*,3*, LAN15,25,35,TGN1*,26,36 |
|
07/2005-03/2012 |
Toyota HILUX |
KUN15,2* |
|
04/2008-12/2014 |
Toyota Alphard, HV, Vellfire |
ANH20, ATH20, GGH20 |
